Description

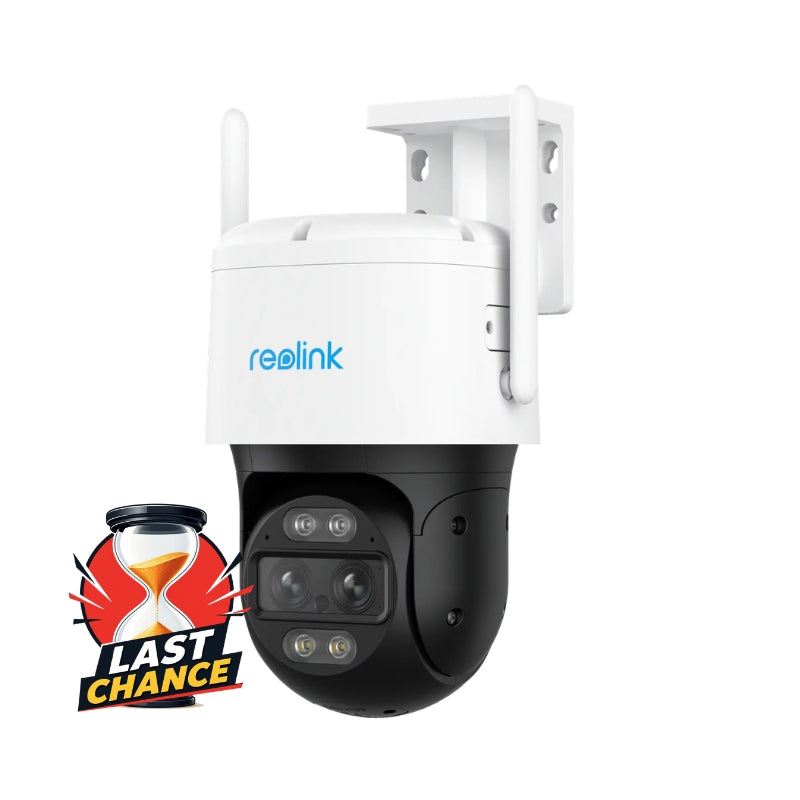

The Reolink TrackMix Wired LTE can be wired to 12V/2A power adapter for continuous power supply and 24/7 recording. It supports 4G LTE cellular network and Ethernet connectivity for optimal connection and versatility. TrackMix Wired LTE can also pan 355° and tilt 90° and automatically track moving objects.
Non-Stop Power for 24/7 Recording: Connect this dual-lens camera to the power grid using the 12V/2A power adapter to ensure continuous power supply. Then you can enjoy 24/7 recording and protection.
Auto Tracking & Auto Zoom: The TrackMix Wired LTE captures wide-angle and close-up views of the same event simultaneously and presents them on the same screen! The camera can pan up to 355° and tilt up to 90° to automatically track the moving object. While tracking, it automatically zooms in on the object to keep a precise focus.
4G Connectivity:The camera supports both 4G and 3G mobile networks, making it ideal for locations where it's difficult to run network cables. Of course, you can also connect this camera to the network using an Ethernet cable. Extensive options to meet any requirement.
Reolink View Service: To enjoy the live view and playback functions of this camera on 3G/4G LTE network, Reolink View Service is required. This camera comes with free 36GB data per year (with a monthly allotment of 3GB) for this Service, allowing you to live view or play back your camera's video for about 10-45 minutes* per day. If you need more than 3GB/month, you can buy data add-ons according to your needs.
The data of Reolink View Service is mainly used for the “live view" and "playback" functions on Reolink App/Client when operating on 3G/4G LTE network.
The above-mentioned free data offer is valid for orders before December 31, 2025.
Smart Detection: By analysing shapes, Reolink TrackMix Wired LTE camera can distinguish between people, vehicles, and animals from other objects, providing you with precise alerts in real-time.
Two-Way Audio: With the built-in microphone and speaker, you can communicate with the person near the camera. Timely alerts coupled with timely responses provide double security.
Multiple Night Vision Modes: There are three night vision modes available: black and white night vision (spotlights off), colour night vision (spotlights on according to schedule), and smart night vision, which means that the spotlights will be automatically activated only when motion is detected at night. Choose according to your needs.
2K Clarity: With a maximum resolution of 2K 4MP, the camera captures clear and detailed images and videos. It can also pan 355 degrees and tilt 90 degrees to cover a larger surveillance area.
Auto Tracking & Real-Time Alerts: Once the camera detects a suspicious object, it automatically tracks it and sends an instant push notification to your device.
Dual View, Live View: Live view what's happening with both the wide-angle view and the close-up view on the same screen. Easy and intuitive.
Easy & Smart Playback: You can replay the saved videos, filter them by detection modes and control the timeline to quickly locate what you want to see.
Customised Motion Zones: You can customise the motion zone to your liking, deciding where objects' movements will be detected and where they will not.
Flexible Storage Options: When the camera is connected to the 4G network, the recorded video can be stored on a microSD card or the Reolink Cloud. When the camera is connected with a network cable, the video can be stored on a microSD card, an NVR, or an FTP server.
MicroSD Card: Secure local storage. Record and store motion clips even during network outages. Supports microSD cards up to 256GB (not included).
FTP: Record videos and save them to your FTP server.
NVR (Optional): Supports 24/7 recording when connected to a compatible Reolink NVR.
Reolink Cloud: Upload important motion clips to the Reolink Cloud, without worrying about the loss of local storage.
Time Lapse Function: With time-lapse, you can capture slow-moving events such as sunsets, flower blooming, construction processes, and more, and display them in seconds or minutes-long videos. Create fun time-lapse videos and share them with your friends!
* This feature is not available when the camera is connected to an NVR. And only wide-angle view supports time-lapse.
Stands up to Harsh Weather: This weatherproof smart IP camera works perfectly both inside and outside your home, even in harsh weather conditions.
Voice Control: As easy as saying “Hey Google, show me the backyard”, you can check what’s happening there on your Google Nest Hub or Chromecast-enabled TVs.
What's in the box?
Shipping: All orders are shipped from within the Republic of Ireland with free delivery on orders over €100. €5.99 for order under €100.
Packages are generally dispatched the next day after receipt of payment and are shipped via An Post Express postage. We now also ship to Northern Ireland and Mainland UK for a fee of €9.99.
Delivery Time - Ireland:
Please allow 1-3 working days for delivery within Ireland but generally* you will receive next day if the order is placed before 3pm Monday to Thursday.
*Not guaranteed.
Delivery Time - UK:
Please allow up to 5-7 working days for delivery to the UK.
We are not currently shipping to Europe. But please register your interest at info@connectit.ie for the future. See full Shipping Policy here.
Returns: We operate a 14 day change of mind refund policy provided goods are returned unused, in original packaging, in original condition and accompanied by proof of purchase. It is our policy to return goods to the purchaser if we suspect that any product has been used.
See full returns and faulty policy here.
Prior to returning any goods, please contact our Online Team at info@connectit.ie who will guide you through our returns process.
Technical Specs for Reolink TrackMix Wired LTE
| Image Sensor | 1/3"CMOS sensor |
|
Video Resolution |
Up to: 2560 x 1440 (4.0 megapixels) @15fps |
| Lens |
f=2.8mm@F=1.6，f=8mm@F=1.6 |
| Video Format | H.264, H.265 |
| Zoom | 6X hybrid zoom |
| Field of View |
Horizontal: 96°-38° Vertical: 55°-21° |
| Infrared Night Vision | Up to 30 meters (100ft) (LED: 2pcs/ 850nm) |
| Colour Night Vision | Spotlight: 2pcs/4W/6500K/450 Lumens |
| Audio | Two-way audio |
| Power |
DC 12V/2A |
| System | Reset Button |
| Ethernet | One 10M/100Mbps RJ45 |
| SIM Card Slot | Nano-SIM |
| Storage | microSD card slot (Max. 256GB) |
| Pan & Tilt | Pan: 355°, Tilt: 0°~90°; (Speed can be set) |
| Frequency Bands |
Europe version: LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 |
| Frame Rate |
Mainstream: 10fps - 15fps Substream: 10fps - 15fps |
| Code Rate |
Mainstream: 1024Kbps -4096Kbps Substream: 64Kbps -672Kbps |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart Alarm | Motion/person/vehicle/animal detection |
| Record Mode | Motion recording (default); schedule recording;24/7 recording |
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P Note: HTTPS, UPnP, RTSP, RTMP, Onvif, DDNS, and FTP are not supported when using 4G/3G LTE network. |
| Max Users | Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Works with | Alexa, Google Assistant, Reolink Cloud |
| Operating Temperature | -10°C ~ +55°C |
| Waterproof | IP65 |
| Dimensions |
228x147x129mm |
| Weight | 1.21KG |
FAQs for Reolink TrackMix Wired LTE
Can I talk to someone via the Reolink App? (Two-way audio)
Yes, this security camera features two-way audio, which means you can listen and talk to someone in real time with simple clicks in App.
Yes, you can turn off the spotlight and siren manually.
By default, the camera's spotlights and siren are motion activated: they will be turned on automatically when a motion is detected. You can turn them off, adjust the brightness of spotlights, or customize the siren to your liking.
Please note that with the spotlights on you can enjoy clear colour night vision, but if the spotlights are turned off, you will only see black and white images at night.
Yes, the camera can support time-lapse. It can save time-lapse photos and videos to the SD card.
Does the camera support cloud storage?
Yes. Note: You can also save motion-triggered video clips into a micro SD card (supports up to 256GB).Note: Cloud storage is not available when the camera is connected to a NVR.
This camera can be used both indoors and outdoors.
It is certified weatherproof and its operating temperature is from -10°C to 55°C (14°F to 131°F), perfect for outdoor and indoor usage.
Yes, the camera can be connected to the network using an Ethernet cable.Note: When both 4G and Ethernet connections are available, the camera will prioritize the wired network connection.
Yes, you can connect the camera to an NVR using an Ethernet cable. It also requires a power adapter for power supply.
Auto Tracking & Zoom refers to the two ways that a TrackMix camera simultaneously uses to automatically track an object in both the wide-angle and zoomed views.
In the panoramic view, which is captured by the camera's wide-angle lens, the camera pans and tilts to keep the detected objects within its field of view; In the zoomed view, which is produced by the two lenses cooperatively, the camera zooms in to the targeted object (which is within the camera's field) to closely follow its movement. It's notable that the TrackMix camera uses advanced technology to restore details and definition to the zoomed-in image, enhancing the image quality.
This can help you track the situation and details at the same time, without manually making the camera pan, tilt or zoom in.
Hybrid zoom is a combination of optical zoom and digital zoom, specifically referring to the presentation of Reolink TrackMix camera's close-up view. This view is cooperatively produced by the camera's two lenses in order to automatically zoom in onto the targeted object. When the target is not too far, the picture captured by the 4MP wide-angle lens will be digitally zoomed in; when the object gets too far, the view then switches to the picture captured by the 2MP telephoto lens to ensure the best image quality. In either way, TrackMix camera uses advanced technology to restore details and definition to the zoomed-in image, enhancing the image quality.
Similar to your cellular phone, cellular security cameras need a SIM card with a data plan to transmit video signals over 3G/4G network.
The common SIM cards offered by carriers like T-Mobile and Vodafone can work for Reolink 4G cameras (as they can for your cellular phone).
The camera works on 4G networks. It also supports 3G, which is not recommended though (since wireless companies are working to retire older network technologies). It does not support 5G or 2G SIM card.
Yet it does not matter if you use a 4G or 5G mobile phone to access the camera. The camera needs a SIM card of its own, which is totally irrelevant to your mobile's SIM card.
Data usage of this camera depends on the bitrate you set up. 1 hour of live feed in 4MP mode for one channel (default bitrate: 3Mbps) will use about 2GB of data. (In 4MP mode, only one channel is available for live feed). If you use 1GB of data to stream live feed in Fluent mode for one channel (default bitrate: 512kbps), you can watch for about 5 hours, while 1GB of data to stream live feed in Fluent mode for two channels at the same time (default bitrate: 512kbps for each) will last for about 2.5 hours. Based on that, you can estimate the data usage to choose the right data plan for you.
The camera can be powered by a 12V 2A DC power adapter (A 1.2-meter power adaptor and a 4.5m extension cable are shipped with the camera). You can check what is in the box at the end of the overview page.
No, the camera does not come with a micro SD card built in. But it has a micro SD card slot.
This camera supports Max. 256GB micro SD cards with FAT32 format and Class 10 or higher read & write speed.
To achieve the full functionality of this 4G security camera, two kinds of data are needed: The data offered by the SIM card is necessary for your device to access the Internet; the data offered by Reolink View Service is necessary for your device's "live viewing" and "playback" on Reolink App/Client.
You can refer to the below table for estimated data usage:
Estimated Data Usage of One Device
| Mainstream (AVG/DAY) | Substream (AVG/DAY) | |
| 1GB/month | 3.33 min/day | 15 min/day |
| 3GB/month | 10 min/day | 45 min/day |
| 5GB/month | 16.67 min/day | 75 min/day |
| 10GB/month | 33.33 min/day | 150 min/day |
| 50GB/month | 166.67 min/day | 750 min/day |
| 100GB/month | 333.33 min/day |
1500 min/day |
- Mainstream: When you live view or playback videos in Clear Mode.
- Substream: When you live view or playback videos in Fluent Mode.
- For example, 3GB/month (3GB data per month) allows you to live view or playback your camera's video for about 10 minutes per day. If you have to view 10+ minutes per day, you may want to choose a view plan with 3GB+ data.
